Renal Solutions Inc. approached Think Design in 2001 with the challenge of creating a portable hemodialysis unit for home treatment. Based on a sorbent dialysate filtration system, the technology eliminates the need for a large volume (600L) of water, as it continuously purifies the dialysate used during treatment and simplifies the operation of the procedure.

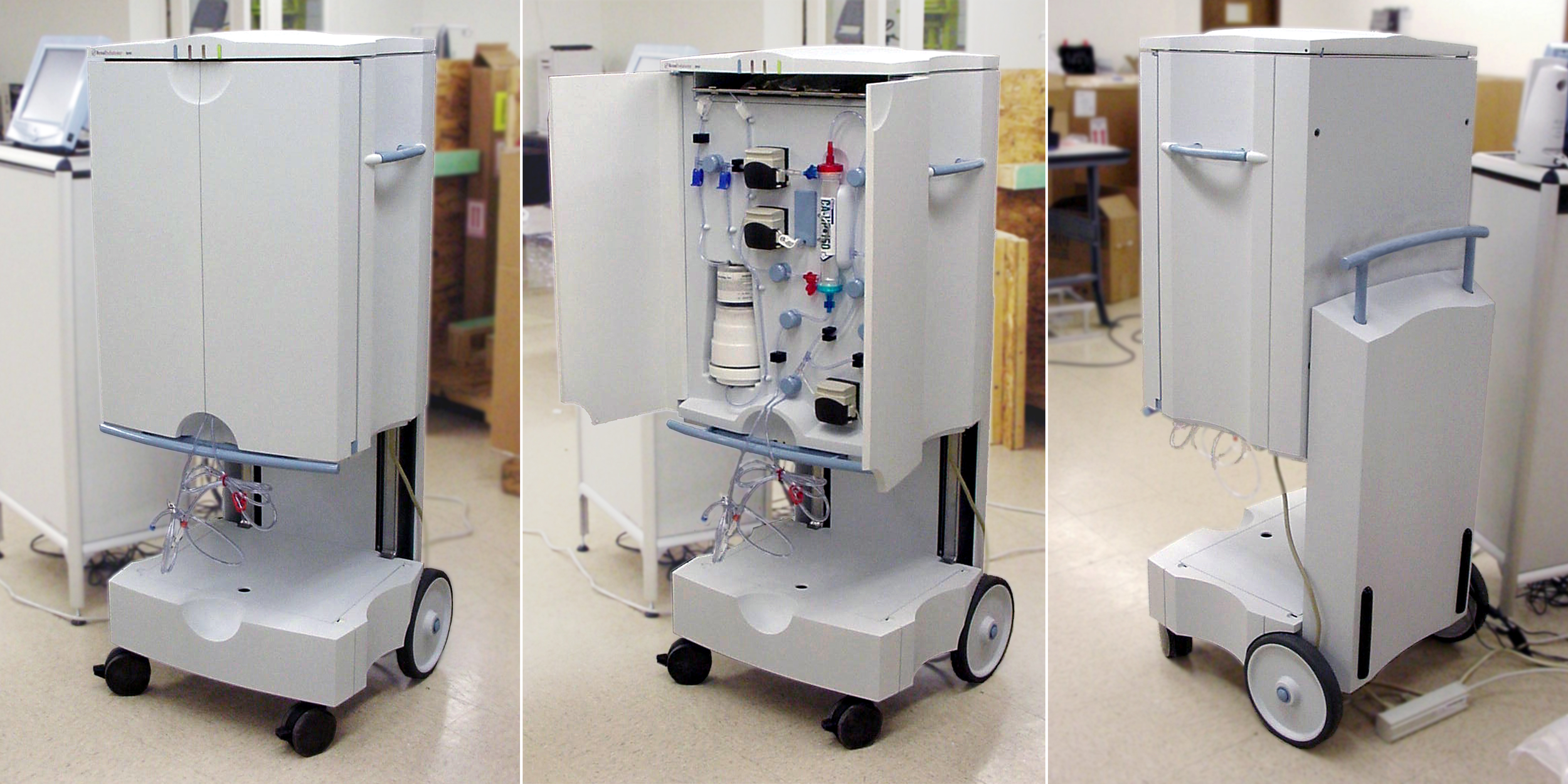

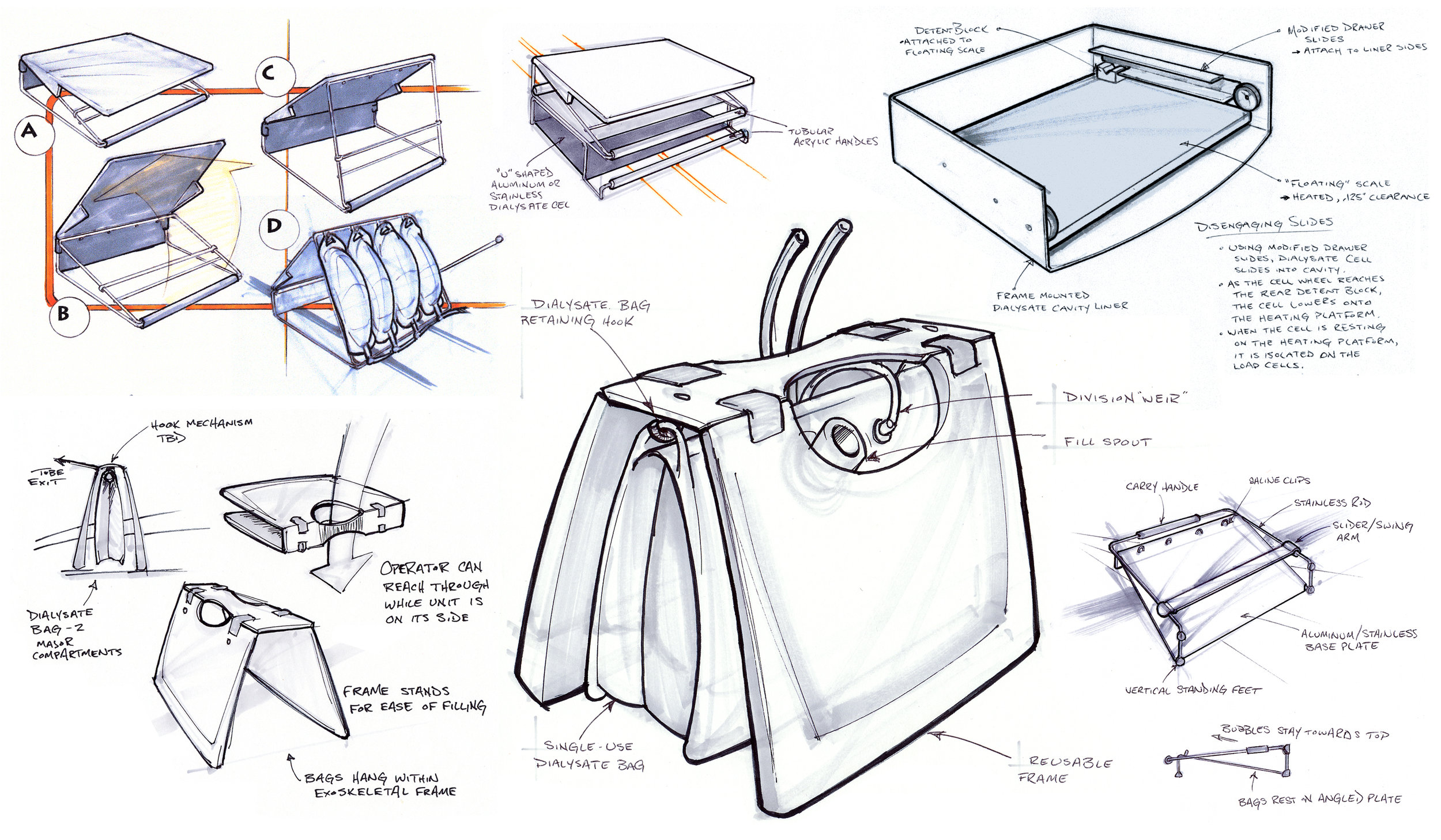

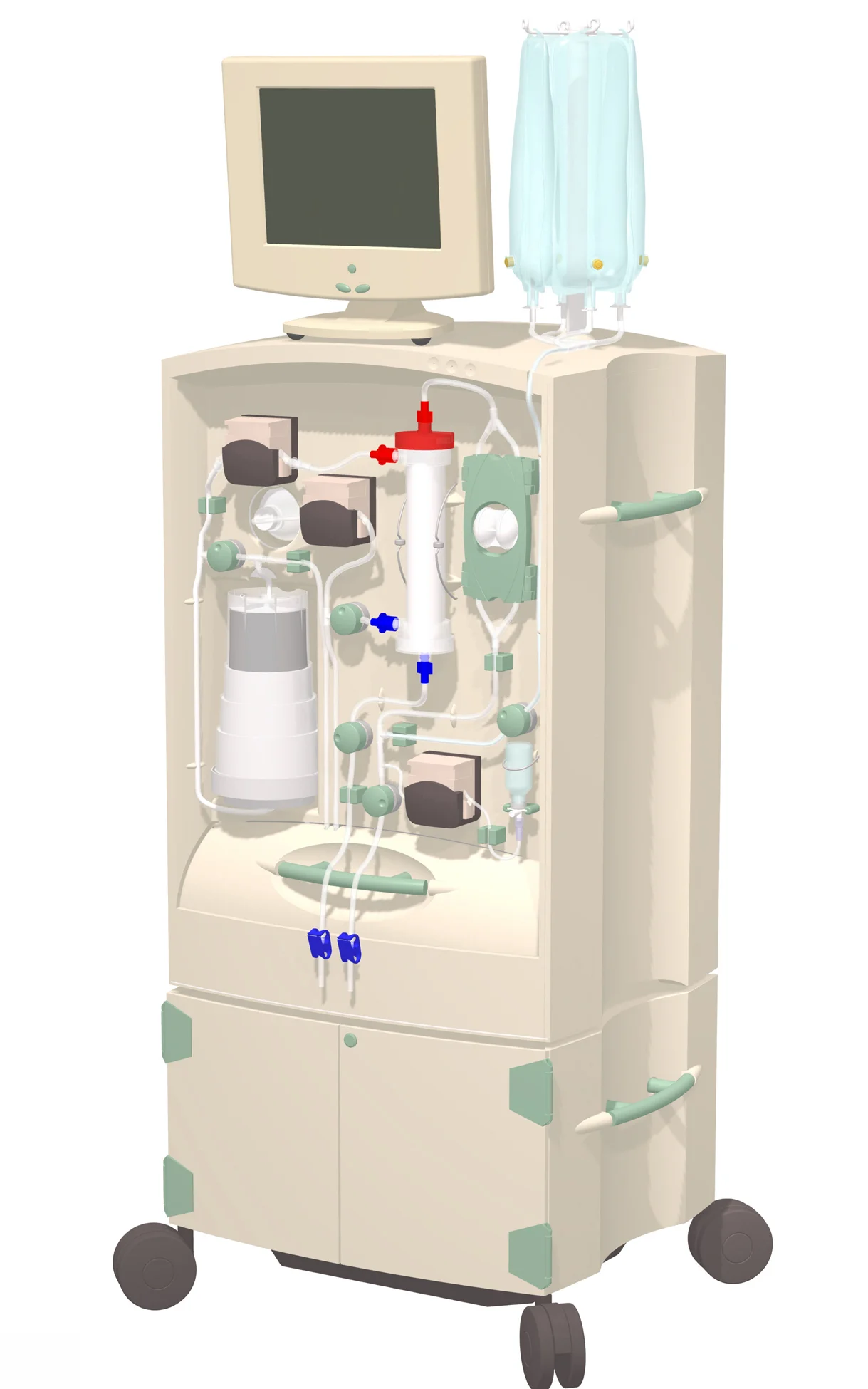

With a focus on portability and ease of use, the design team focused on developing an intuitive procedure for set-up, operation and safety. Individual sub-systems were optimized for efficiency, including a patented, dual chambered pneumatically driven blood pump, custom component housings, dialysate reservoirs and saline delivery. A custom cart was designed to assist with portability and operation, providing users the ability to easily raise and lower the device between operating and transport positions via the use of a counter-balanced pneumatic lift.

Project Role: Component Layout & Enclosure Design

Year: 2001
